Description

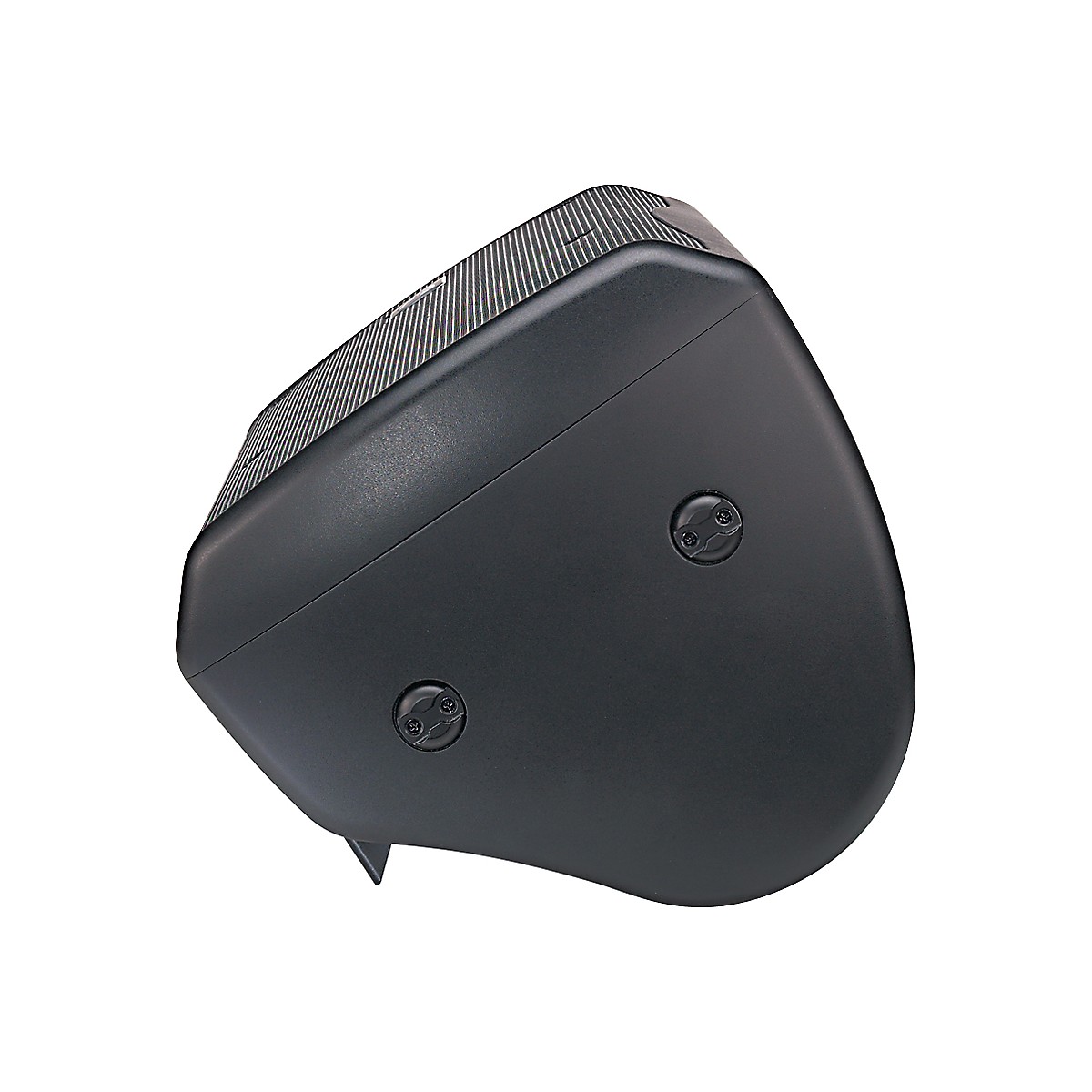

The Electro-Voice Zx5 is a 15″, two-way cabinet with the most elegant, high-impact, composite enclosure, featuring the newest generation of EV components: The DXV3150 500-watt, 15″ woofer and the 2″ neodymium ND2 compression driver.
The Zx5 is rated for 600-watt, long-term power handling and is able to produce high SPLs while providing a very smooth frequency response. With two available coverage patterns (60 x 60 or 90 x 50), two adjustable monitor angles (45 or 55) and ten built-in rigging and suspension points allow for a variety of mounting accessories, the Zx5 fits a variety of applications such as installations of individual speakers or clusters in entertainment, houses-of-worship, as well as on stage with bands, musicians, and PA rental companies.
Electro-Voice ZX5-90 15" 600W Passive PA Speaker Black Specs
| Recommended High-Pass Frequency | 36 Hz |
| Sensitivity 1W/1m | 98 dB |
| Max. SPL / 1m (calc) | 132 dB |
| Coverage (nominal -6dB) H | 60 |
| Coverage (nominal -6dB) V | 60 |
| System Power Handling (continuous/program/peak) | 600/1200/2400 watts |
| Low Frequency Power Handling (continuous/program/peak) | 500/1000/2000 watts |
| High Frequency Power Handling (continuous/program/peak) | 40/80/160 watts |
| LF Transducer | DVX3150 |
| HF Transducer | ND2 |
| Crossover Frequency | 1500 Hz |
| Nominal Impedance (Passive) | 8 Ohms |
| LF Nominal Impedance | 8 Ohms |
| HF Nominal Impedance | 8 Ohms |
| Minimum Impedance | 6.5 Ohms |
| Color | Black |
| Color | White |
| Flying | Yes |
| Input Connections | Parallel Neutrik NL4 |
| Outdoor | Yes |
| Chassis Size | 15" |
| Internal Crossover | Selectable |
| Speaker Type | Fullrange, Mid-High, Two-Way, Wedges |
| Weight Net | 22.5 kg ( 49.6 lb.) |
| Dimensions (HxWxD) | 692 x 446 x 411 mm |
| (27.24" x 17.56" x 16.18") |
Additional information
| Live Sound Type | PA Speakers |
|---|
