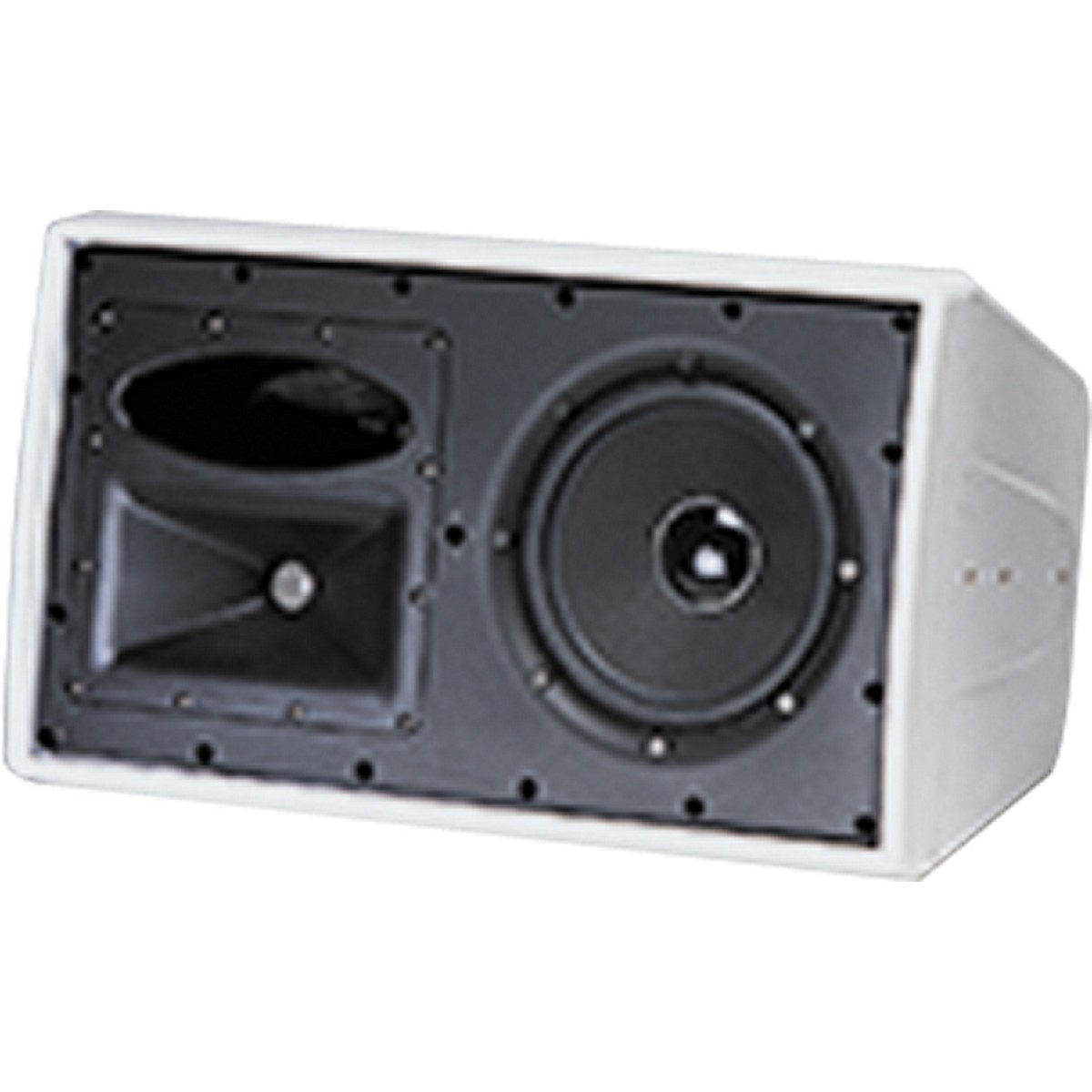

JBL C29AV-1 Control 2-Way Indoor/Outdoor Speaker White
In Stock
Description
The Control 29AV-1 provides improved voicing for extremely flat, high-fidelity performance, extended bandwidth and well-controlled defined coverage from a compact loudspeaker. The rotatable high-frequency horn allows use of the speaker in either vertical or horizontal orientation. Consistent coverage ensures excellent sound character throughout the listening area. Moderate magnetic shielding allows use of the speaker as close as 9″ (230 mm) to video monitors. The top-quality line distribution transformer, designed for minimal insertion loss and reduced saturation, allows use of either 70V or 100V distributed speaker lines. In bypass position, the 8-ohm impedance allows use of multiple speakers on a loudspeaker line.
The InvisiBall mounting method is simple to install, aims easily and provides a high degree of theft deterrence. InvisiBall allows horizontal rotation of up to 41 off-axis and vertical rotation of up to 36 (horn end inward) or 23 (woofer end inward).
Weather resistance has been maximized in the Control 29AV-1 speaker. The woofer’s cone is made of Kevlar, surround is pure butyl rubber and the driver basket is rear loaded to minimize direct exposure. The compression driver’s diaphragm is pure titanium. The grille is thermoset composite-coated and comes with foam to minimize incursion of water. Nickel/zinc rust-resistant terminals ensure a secure input connection. An MTC-PC2 sealed-entrance cover is included to further protect the speaker’s terminals.
JBL’s exclusive SonicGuard overload protection is virtually inaudible to the listener, ensuring reliability while providing full-fidelity sound.
You can’t go wrong with speakers from the company whose name is synonymous with cinema sound and was voted number one in the recording industry in 1976 (the heyday of recording) by studio professionals. Today, JBL monitors are used by Grammy winners such as Frank Fillipetti (Ray Charles, Korn, Billy Joel, Kiss) and Nate Kunkel (B.B. King, Sting, Crystal Method, Maroon 5).
JBL C29AV-1 Control 2-Way Indoor/Outdoor Speaker White Specs
| Frequency Range (?10dB) | 37Hz?18kHz |
| Frequency Response (?3dB) | 43Hz?15kHz |
| 100-Hour Power Capacity | 300-watts Continuous Program Power, 150-watts Continuous Pink Noise |
| Maximum SPL @ 1m3 | Short-Term: 118dB; Long-Term: 112dB |
| Nominal Sensitivity (half-space average 100Hz to 10kHz) | 90dB, 1W @ 1 m (3.3') |
| Nominal Coverage Angle | 110H x 85V, rotatable |
| Directivity Factor (Q) | 6.7, averaged 500Hz to 16kHz |
| Directivity Index (DI) | 8.3dB, averaged 500Hz to 16kHz |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 6.3 ohms @ 230Hz 3.3 ohms @ 4.1kHz |
| Crossover Type | 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5kHz crossover frequency |
| Transformer Taps | 70V: 110W, 55W, 28W & 14W; 100V: 110W, 55W, & 28W; through position: 8 ohms nominal |
| Low Frequency | 8" (200 mm) kevlar cone with pure butyl rubber surround, 2" (50 mm) voice coil on fiberglass former |
| High Frequency | 1" (25 mm) compression driver, pure titanium diaphragm with patented JBL diamond surround |
| Enclosure Material | High-impact polystyrene |
| Grille | Thermoset composite-coated steel |
| Overload Protection | Full-range power limiting to protect network and transducers; serviceable internal fuse to protect during extreme overload conditions |
| Environmental | IEC 529 IP-X4 splashproof rating; exceeds Mil-Spec 810 for humidity, salt spray, temperature & UV; Passes Mil-Std-202F for salt spray |
| Termination | Screw-down terminal strip, zinc-plated copper base, nickel-plated metal screws/washers; accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm) |
| Safety Agency Rating | Transformer is listed per UL1876 |
| Dimensions (HxWxD) | 20.5" x 12" x 10.9", (520 x 306 x 277mm) |
| Net Weight (each) | 26.8 lb. (12.2 kg) |
| Included Accessories | 1-piece MTC-PC2 input panel cover, InvisiBall mounting base, 6x260 mm hex wrench |
Additional information
| Live Sound Type | Installed Sound |
|---|
