Description

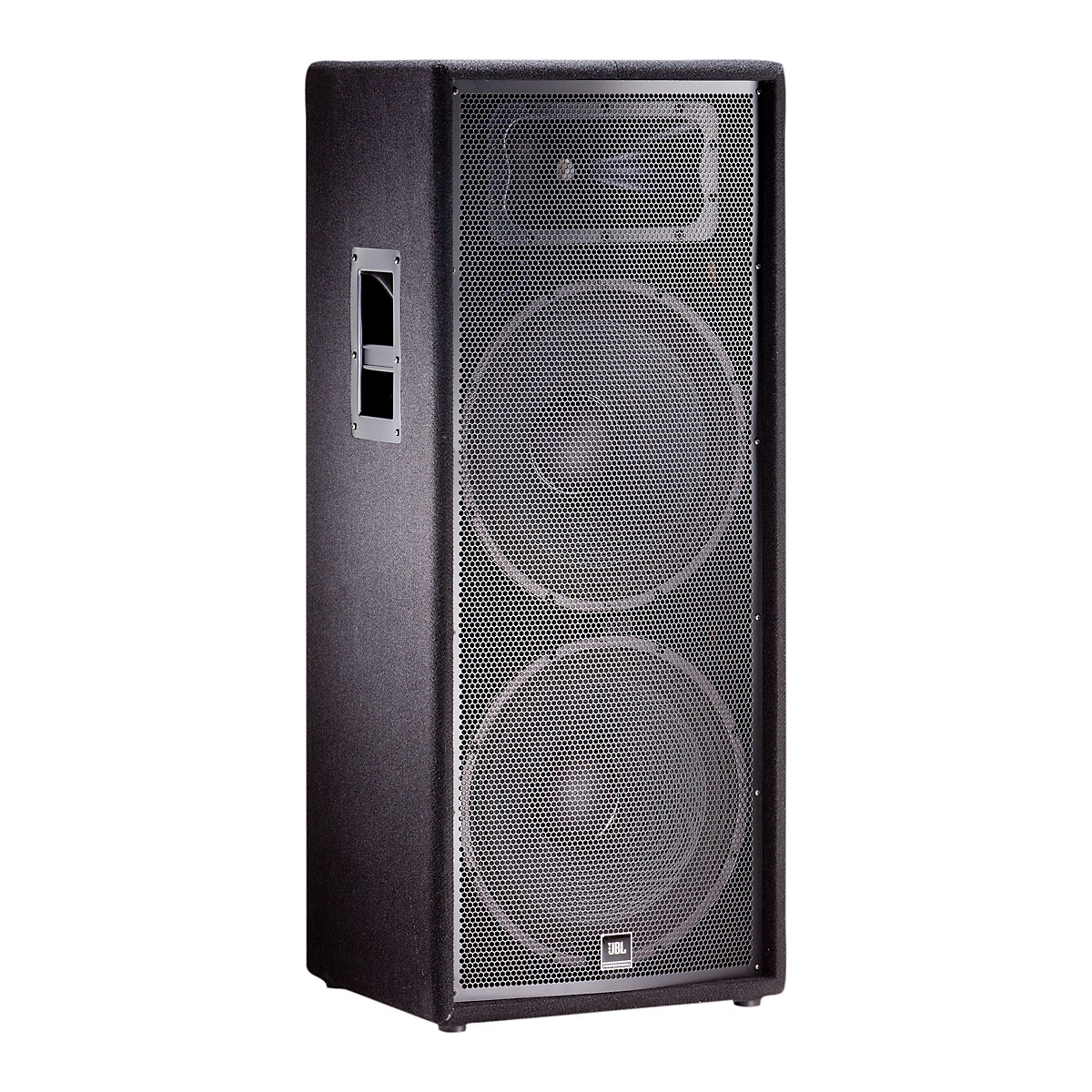

The JBL JRX225 is a dual 15″ two-way PA speaker system designed for live performance and playback. JBL engineers optimized every component to deliver professional-grade sound affordably. The JRX225 utilizes two 15″ low-frequency drivers, each with a 2.5″ edgewound ribbon voice coil that provides more surface area than round-wire coils for increased efficiency and power handling. A 1″ polymer-diaphragm compression driver maximizes high-frequency performance and reliability. With its dual 15″ woofers, the JRX225 produces thunderous bass and full-range sound perfect for any venue.
Massive Power and Bass Extension
The dual 15″ woofers provide extra low-frequency power and extension, eliminating the need for a separate subwoofer. An advanced crossover network shapes the frequency response and ensures coherent sound where the woofers and tweeter meet. The upper woofer handles midrange and bass, while the lower woofer focuses purely on bass to reduce midrange phase cancelation and improve sound quality and coverage. High-voltage components enable the crossover to handle high power without distortion.
Superior High-Frequency Performance
A Progressive Transition high-frequency waveguide provides wide, even coverage, low distortion and a smooth frequency response. The 1″ polymer-diaphragm compression driver delivers clear, accurate highs. SonicGuard protection prevents overpowering the tweeter without affecting performance.
Road-Ready and Rugged
The JRX225’s .75″ MDF enclosure is highly durable and acoustically optimized. It features recessed, all-steel handles for easy transport and rigging. With its massive woofers, robust components and sturdy cabinet, the JRX225 is built to withstand the demands of touring and handle up to 2,000 watts of power.
Unparalleled Versatility
Perfect for mains or monitors, the JRX225 works with any mixer or amplifier. Its full-range capability and high power handling allow it to perform in a variety of applications from clubs and auditoriums to houses of worship and music venues. The JRX225 offers professional-grade power and performance affordably.
JBL JRX225 Dual 15" 2-Way Passive Loudspeaker With 2,000W Peak Power Specs
| Power Rating | 500W/2,000W |
| Frequency Range (-10 dB) | 36Hz?16kHz |
| Frequency Response (?3dB) | 45Hz?12kHz |
| Sensitivity (@1m) | 100dB SPL (1w/1m) |
| Nominal Impedance | 4 ohms |
| Recommended Amplifier Power | 500W to 1,000W into 4 ohms |
| Maximum SPL | 133dB |
| Nominal Dispersion | 90? x 50? |
| Crossover Frequency | 2kHz |
| (HxWxD) | |
| 43.25" x 18.25" x 17" (1,099 mm x 464 mm x 432 mm) | |
| Weight | 42.6 kg (94 lb.) |
| High Frequency Driver | JBL 2414H-C 25 mm (1") polymer diaphragm compression driver mounted on Progressive Transition Waveguide |
| Low Frequency Driver | JBL M128 x 2 |
| Input Connectors | Neutrik Speakon NL-4 (x1); .25 in TS phone jack (x1); parallel |
Additional information
| Live Sound Type | PA Speakers |
|---|
