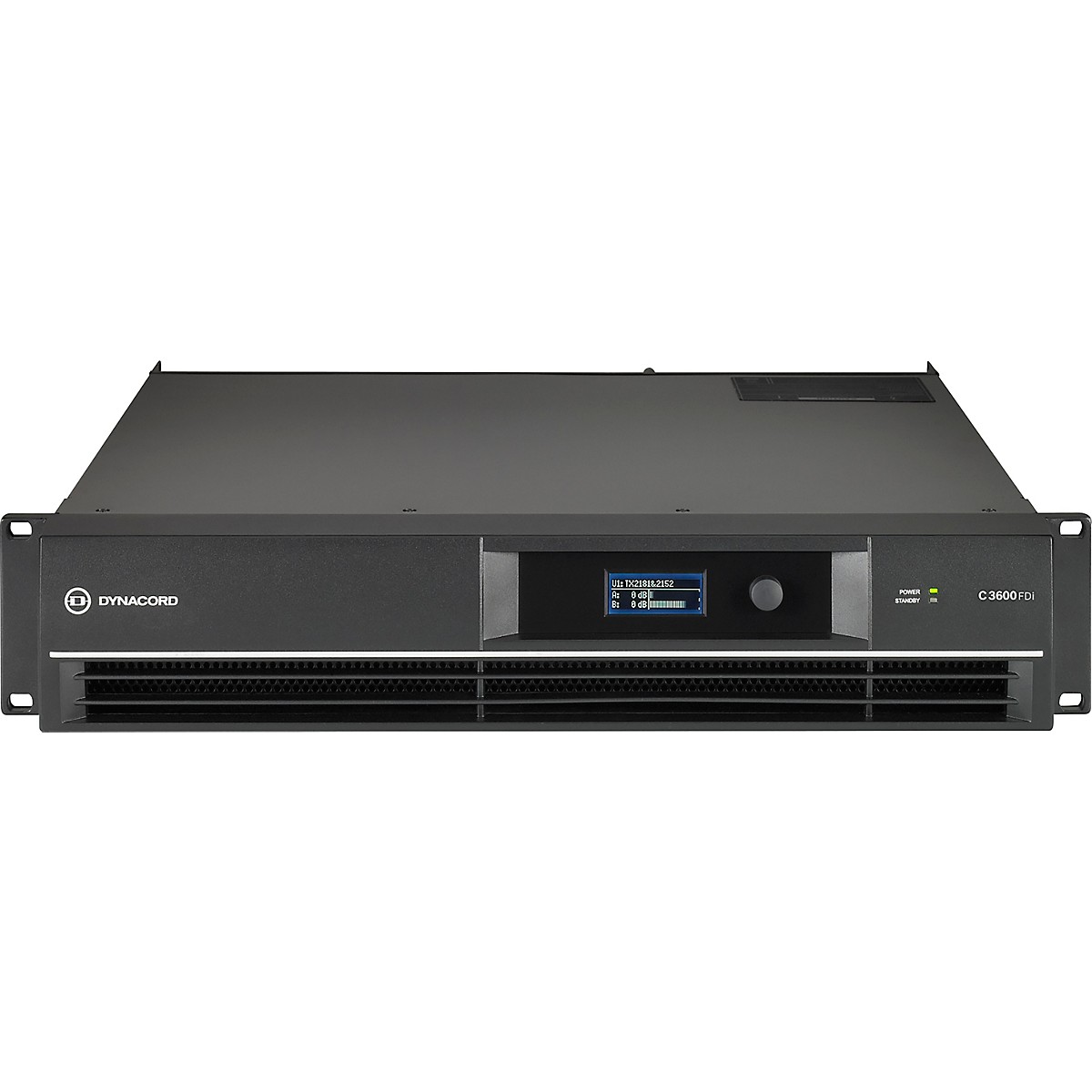

DYNACORD C3600FDi DSP 2 x 1800 W Power Amplifier for Fixed Install Applications
In Stock
Description
The Dynacord C3600FDi DSP is a dedicated installation DSP amplifier optimized for 24/7 operation. Besides low impedance operation (2 Ohms, 4 Ohms or 8 Ohms), the C3600FDi can drive 100 V loudspeaker lines directly (-1.5 dB) without output transformers. Integrated digital signal processing provides access to professional speaker processing with FIR Drive technology. C Series amplifier utilize Class A/B resp. Class H topologies, which provide market-leading acoustic performance and reliability. The connectivity is optimized for the needs of fixed install applications. For low cost of ownership, a power saving standby mode is available. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
DYNACORD C3600FDi DSP 2 x 1800 W Power Amplifier for Fixed Install Applications Specs
| Load Impedance | |
| 2 O | |
| Maximum Output Power, Single Channel | 3200 W |
| Maximum Output Power, Dual Channel | 3000 W |
| 2.7 O | |
| Maximum Output Power, Single Channel | 2700 W |
| Maximum Output Power, Dual Channel | 2500 W |
| 4 O | |
| Maximum Output Power, Single Channel | 1800 W |
| Maximum Output Power, Dual Channel | 1700 W |
| Maximum Output Power, Bridged | 6000 W |
| 8 O | |
| Maximum Output Power, Single Channel | 950 W |
| Maximum Output Power, Dual Channel | 900 W |
| Maximum Output Power, Bridged | 3400 W |
| Direct Drive | |
| 2 O | 70 V Operation |
| 4 O | 100 V Operation |
| Load Capability | |
| 2 O | Not recommended |
| 4 O | 2 x 1250 W (-1.5 dB) |
| Dual Channel Bridged | |
| 2 O | Not recommended |
| 4 O | Not recommended |
| Maximum RMS Voltage Swing THD = 1%, 1 kHz | 96.6 V |
| Voltage Gain Ref.1 kHz | 32.0 dB |
| THD at 900 W/4 O MBW = 80 kHz, 1kHz | < 0.05% |
| IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% |
| DIM30,3.15 kHz, 15 kHz | < 0.05% |
| Maximum Input Level | +21 dBu |
| Crosstalk ref. 1 kHz, at 100W/4 O | < -80 dB |
| Frequency Response, ref. 1 kHz | 10 Hz to 21 kHz (?1 dB) |
| Input Impedance, Active Balanced | 20 k O |
| Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 O | >109 dB |
| Output Noise, A-weighted | < -68 dBu |
| Output Stage Topology | Class H |
| Power Requirements | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) |
| Power Consumption ? Maximum Output Power @ 4 O | 850 W |
| Mains Fuse | 240 V/230 V: T15AH; 120 V/100 V: T30AH |
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay |
| Cooling | Front-to-rear, 3-stage-fans |
| Ambient Temperature Limits | +5?C to +40?C (40?F to +105?F) |
| Safety Class | I |
| Color | Black |
| Weight | 18.2 kg (40.1 lb) |
| Remote Power ON/GPIO | Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection |
| Signal Processing | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance |
| Remote Control | SONICUE sound system software ** |
| Accessories | RMK15 (rear rack mount kit) |
