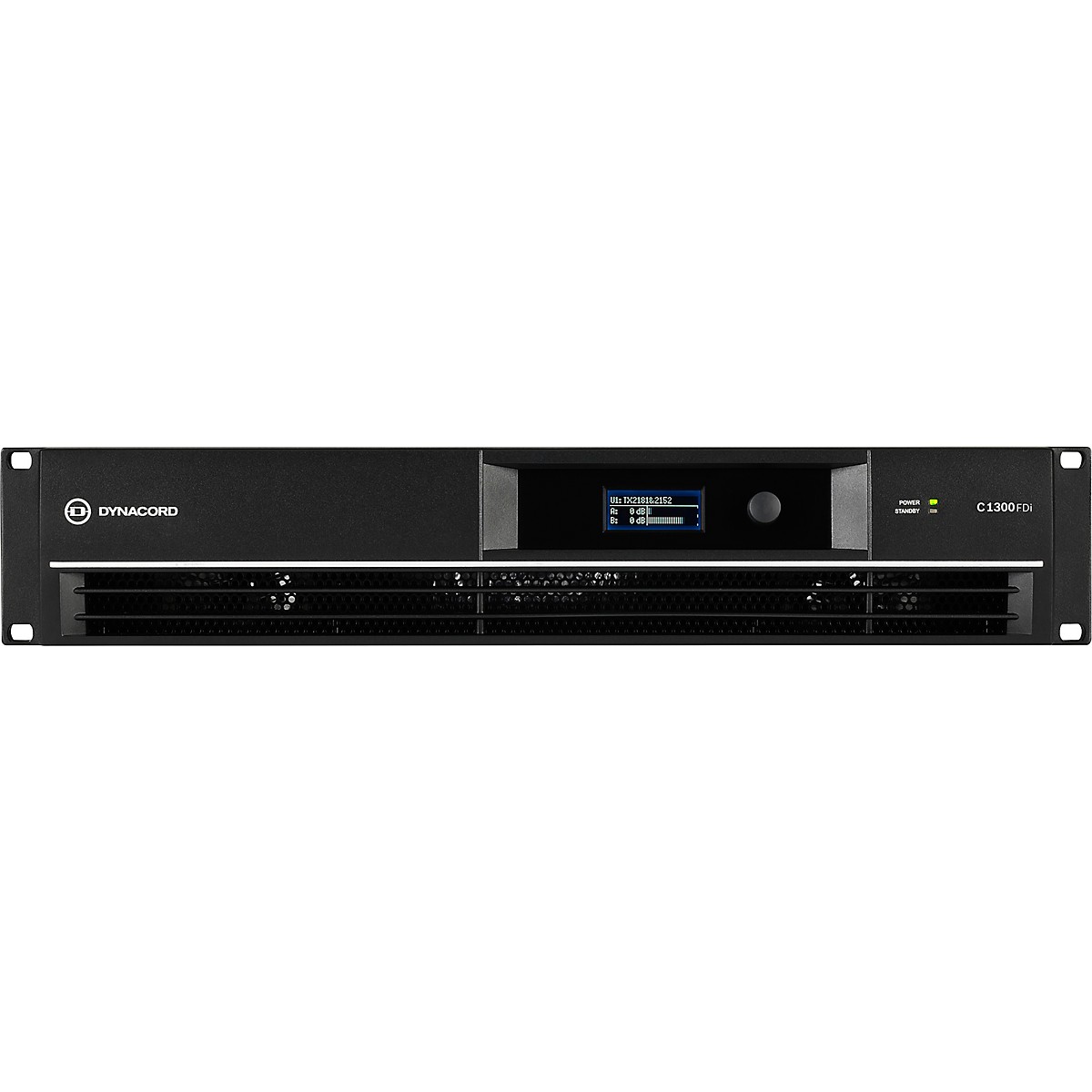

DYNACORD C1300FDi DSP 2 x 650W Power Amplifier
In Stock
Description
The Dynacord C1300FDi 2 x 650W power amplifier is a dedicated installation DSP amplifier optimized for 24/7 operation. Integrated digital signal processing which provides access to professional speaker processing thanks to FIR Drive technology, while also utilizing Class H topologies, which provide improved acoustic performance and reliability. For low cost of ownership a power saving standby mode is available. A front panel LC display allows local control and supervision of the amplifier, and an intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
DYNACORD C1300FDi DSP 2 x 650W Power Amplifier Specs
| Maximum RMS Voltage Swing THD = 1%, 1 kHz | 55.3 V |
| Voltage Gain Ref.1 kHz | 32 dB |
| THD at 450 W/4O MBW = 80 kHz, 1kHz | < 0.05% |
| IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% |
| DIM30, 3.15 kHz, 15 kHz | < 0.05% |
| Maximum Input Level | +21 dBu |
| Crosstalk ref. 1 kHz, at 100W/4 O | < -80 dB |
| Frequency Response, ref. 1 kHz | 10 Hz to 21 kHz (?1 dB) |
| Input Impedance, Active Balanced | 20 k O |
| Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 O | >104 dB |
| Output Noise, A-weighted | < -68 dBu |
| Output Stage Topology | Class AB |
| Power Requirements | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) |
| Power Consumption 1/8 Maximum Output Power @ 4 O | 550 W |
| Mains Fuse | 240 V/230 V: T10AH; 120 V/100 V: T20AH |
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay |
| Cooling | Front-to-rear, 3-stage-fans |
| Ambient Temperature Limits | +5?C to +40?C (40?F to +105?F) |
Additional information
| Live Sound Type | Live Power Amplifiers |
|---|
